M51202L - VOLTAGE COMPARATOR

Datasheet Summary

Description

The M51202L is a semiconductor integrated circuit consisting of precision voltage comparator.

It is designed specifi.

cally to operate from a single power supply of low voltage.

Features

  • Low input current.
  • 8nA( typ. l.
  • 60mA output current capability can drive a relay or a lamp.
  • Built-in protection zener diodes for reverse E. M. F. at the output terminal.
  • Wide supply voltage range.
  • 1. 7 - 6.5V.
  • High output break down voltage 18V(max. ).

📥 Download Datasheet

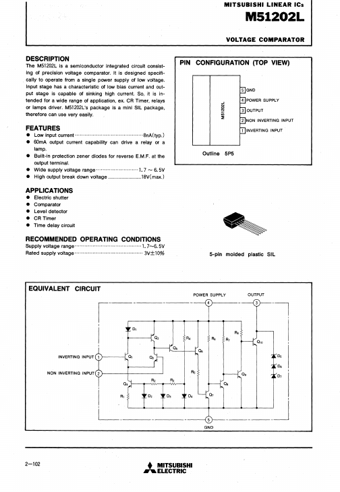

Datasheet preview – M51202L

Datasheet Details

Part number M51202L
Manufacturer Mitsubishi
File Size 178.88 KB
Description VOLTAGE COMPARATOR
Datasheet download datasheet M51202L Datasheet
Additional preview pages of the M51202L datasheet.

📁 Similar Datasheet

  • M51201 - Industrial Linear (ETC)
  • M5123 - Mega I/O Controller (Acer Laboratories)
  • M5125 - Mega I/O Controller (Acer Laboratories)
  • M51257L - MSM51257L (OKI)
  • M51271FP - NTSC / PAL Chroma Decoder (ETC)
  • M51271FP - NTSC/PAL Decoder (Mitsubishi Electric)
  • M51271SP - NTSC/PAL Decoder (Mitsubishi Electric)
  • M51279FP - NTSC / PAL Decoder (Mitsubishi Electric)
  • M51279SP - NTSC / PAL Decoder (Mitsubishi Electric)
  • M51 - TRIPLE-BALANCED MIXER (Tyco Electronics)
Other Datasheets by Mitsubishi

Full PDF Text Transcription

Click to expand full text
MITSUBISHI LINEAR ICs MS1202L VOLTAGE COMPARATOR DESCRIPTION The M51202L is a semiconductor integrated circuit consisting of precision voltage comparator. It is designed specifi. cally to operate from a single power supply of low voltage. Input stage has a characteristic of low bias current and output stage is capable of sinking high current. So, it is intended for a wide range of application, ex. CR Timer, relays or lamps driver. M51202L's package is a mini SIL package, therefore can use very easily. FEATURES • Low input current ......................................... ·8nA( typ.l • 60mA output current capability can drive a relay or a lamp. • Built-in protection zener diodes for reverse E.M.F. at the output terminal. • Wide supply voltage range .................. ·...... · 1. 7 - 6.
