M51203L - VOLTAGE COMPARATOR

Datasheet Summary

Description

The M51203L is a; semiconductor integrated circuit consisting of precision voltage comparator.

It is designed specifically to operate from a single power supply of wide range.

Features

  • Low input current 20nA(typ. ).
  • Wide supply voltage range.
  • 3. 0-28V.
  • Low circuit current 2.5mA(max. ).
  • 60mA output current capability can drive a relay or a lamp.
  • High output break down voltage.
  • 30V(max. ).
  • Including both reference voltage circuit and hysteresis f.

📥 Download Datasheet

Datasheet preview – M51203L

Datasheet Details

Part number M51203L
Manufacturer Mitsubishi
File Size 173.66 KB
Description VOLTAGE COMPARATOR
Datasheet download datasheet M51203L Datasheet

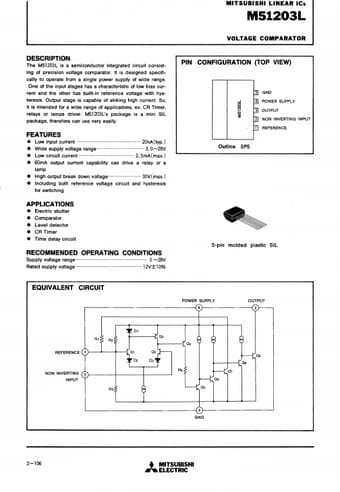

Additional preview pages of the M51203L datasheet.

📁 Similar Datasheet

  • M51201 - Industrial Linear (ETC)
  • M5123 - Mega I/O Controller (Acer Laboratories)
  • M5125 - Mega I/O Controller (Acer Laboratories)
  • M51257L - MSM51257L (OKI)
  • M51271FP - NTSC / PAL Chroma Decoder (ETC)
  • M51271FP - NTSC/PAL Decoder (Mitsubishi Electric)
  • M51271SP - NTSC/PAL Decoder (Mitsubishi Electric)
  • M51279FP - NTSC / PAL Decoder (Mitsubishi Electric)
  • M51279SP - NTSC / PAL Decoder (Mitsubishi Electric)
  • M51 - TRIPLE-BALANCED MIXER (Tyco Electronics)
Other Datasheets by Mitsubishi

Full PDF Text Transcription

Click to expand full text
MITSUBISHI LINEAR ICs MS1203L VOLTAGE COMPARATOR DESCRIPTION The M51203L is a; semiconductor integrated circuit consisting of precision voltage comparator. It is designed specifically to operate from a single power supply of wide range. One of the input stages has a characteristic of low bias current and the other has built-in reference voltage witli hysteresis. Output stage is capable of sinking high current. So, it is intended for a wide range of applications, ex. CR Timer, relays or lamps driver. M51203L's package is a mini SIL package, therefore can use very easily. FEATURES • Low input current ........................................ 20nA(typ.) • Wide supply voltage range······ ....................... 3. 0-28V • Low circuit current .................................. 2.5mA(max.
