M51712P

3-PHASE BRUSHLESS MOTOR DRIVER

M51712P Features

* Low torque ripple

* Reducing the mechanical noise

* High speed response

* Minimized external components APPLICATION VTR, floppy disk driver, etc RECOMMENDED OPERATING CONDITIONS Supply voltage range 6.-12V Rated supply voltage" 12V BLOCK DIAGRAM PIN CONFIGURATIO

M51712P General Description

The M51712P is designed for use in 3-phase Brushless Motor in combination with the servo IC. The M51712P is encapsulated in DIL with the fin 20-pin package, integrating Hall drivers, output drivers, Hall compensator and control amplifier and other functions. The M51712P provides the linear amplified.

M51712P Datasheet (166.37 KB)

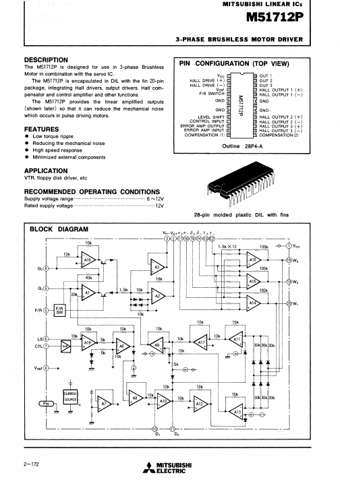

Preview of M51712P PDF

Datasheet Details

Part number:

M51712P

Manufacturer:

Mitsubishi

File Size:

166.37 KB

Description:

3-phase brushless motor driver.
