M51714P

DUAL BI-DIRECTIONAL DRIVER

M51714P Features

* O. 4A output current capability per driver

* 1. 2A peak output current per driver

* Many choice of operating mode

* 2-Enable facility

* Theshold voltage is set at 2. OV (typ.)(lnputs & Enables). APPLICATION VTR, tape recorders and typewriters RECOMMENDED O

M51714P General Description

The M51714P is designed for use in various motor equipments, such as audio, video and OA devices. The M51714P is able to drive two motors forward or backward in bridge configurations. The circuit is mounted in a 16pin OIL package which helps to minimize the space for a motor control unit and is easy.

M51714P Datasheet (112.02 KB)

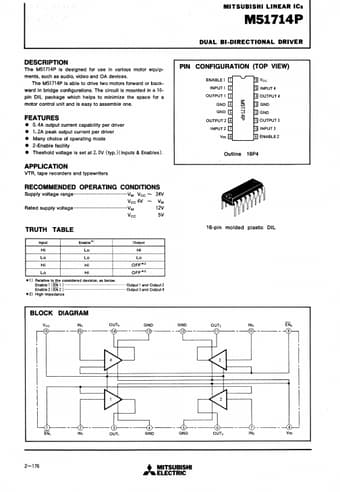

Preview of M51714P PDF

Datasheet Details

Part number:

M51714P

Manufacturer:

Mitsubishi

File Size:

112.02 KB

Description:

Dual bi-directional driver.
