M51901P

12-POINT/23-MODE LED DRIVER

M51901P Features

* 12 LEOs may be driven in accordance with the level of a DC voltage applied to the input, using a built-in A-O conversion capability.

* 23 operating modes are provided

* Built-in blanking function

* The reference voltage level may be freely selected APPLICATION 23-mo

M51901P General Description

The M51901 P is a semiconductor integrated circuit consisting of a driver circuit capable of driving 12 LEOs in 23 modes. When a DC voltage is applied to the input pin the. LEO driving outputs are activated either 1 or 2 at a time to provide 23 LEO drive modes in accordance with the applied voltage .

M51901P Datasheet (145.16 KB)

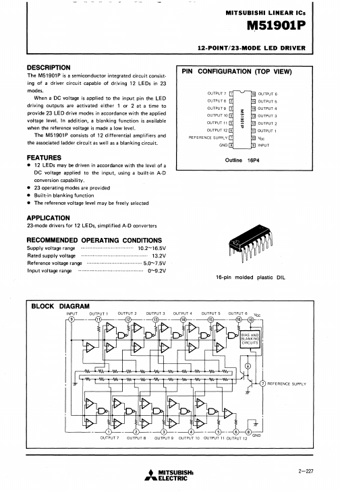

Preview of M51901P PDF

Datasheet Details

Part number:

M51901P

Manufacturer:

Mitsubishi

File Size:

145.16 KB

Description:

12-point/23-mode led driver.
