M5216

DUAL LARGE-CURRENT OPERATIONAL AMPLIFIERS

M5216 Features

* which make this device ideal for headphone amplifiers in portable products. FEATURES

* Large current capacity

* :

* I LP = ±100mA

* High power output

M5216 General Description

The M5216 is a semiconductor integrated circuit designed as a high-output and high-speed operational amplifier for use in high-performance headphone amplifiers and mixer amplifiers found in cassette decks. The device comes in an B-pin SIL or DIL package and it contains two circuits for yielding a hi.

M5216 Datasheet (146.08 KB)

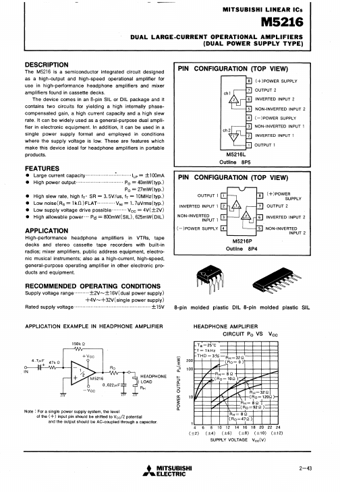

Preview of M5216 PDF

Datasheet Details

Part number:

M5216

Manufacturer:

Mitsubishi

File Size:

146.08 KB

Description:

Dual large-current operational amplifiers.
