M52337SP

3-CHANNEL VIDEO PREAMPLIFIER

M52337SP Features

* M52337SP

* Frequency band: RGB 110MHz (at 3V P-P) Input OSD50MHz : RGB0.7V P-P (Typ.) OSD3.0 to 5.0 VP-P (positive polarity) BLK4.0 VP-P or more (positive polarity) Output : RGB4.0 V P-P (max.) OSD3.5 VP-P (max., black level=2V) INPUT (G) 8 SUB CONTRST (G) 9 OSD IN (G) 10 GND 1 (G) 11 VCC

M52337SP General Description

M52337SP is a video preamplifier provided with OSD mixing function, and a semi-conductor IC having three channels of a builtin amplifier in the 110MHz band. Each channel has the functions of OSD blanking, OSD mixing, wideband amplifier, main and sub-contrast control, and main and sub brightness. Accord.

M52337SP Datasheet (110.77 KB)

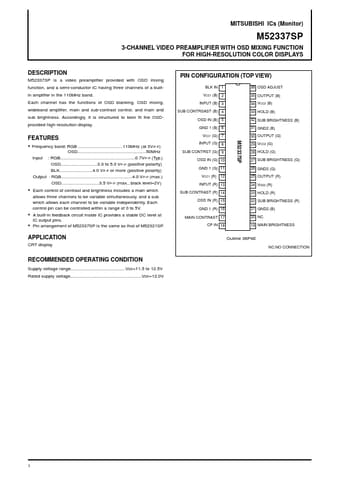

Preview of M52337SP PDF

Datasheet Details

Part number:

M52337SP

Manufacturer:

Mitsubishi

File Size:

110.77 KB

Description:

3-channel video preamplifier.
