M52338FP

INTERFACE-IC

Mitsubishi

M52338FP Features

* γ correction circuit is built in to correct non-linearity of luminance characteristics caused by applied voltage which is peculiar to a liquid crystal panel.

* By combining with Mitsubishi video/chroma signal processing ICs, M52042FP (NTSC) and M52045FP (PAL), low cost and optimal

M52338FP General Description

The M52338FP is a semiconductor integrated circuit containing an interface circuit which is necessary to drive an active matrix liquid crystal panel. PIN CONFIGURATION (TOP VIEW) MAIN IN R CLAMP R MAIN IN G CLAMP G MAIN IN B CLAMP B MAIN/EXT SW HD IN CP CONT. 1 2 3 4 5 6 7 8 9 32 VCC1 31 EXT IN .

M52338FP Datasheet (136.10 KB)

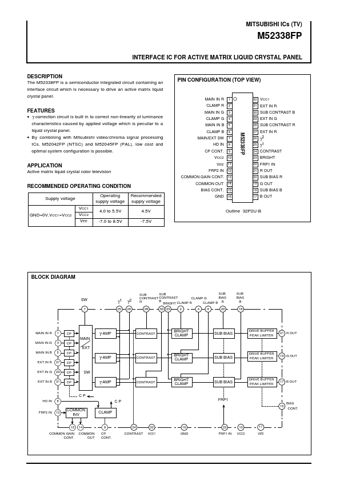

M52338FP Datasheet Preview — Preview of M52338FP PDF

Datasheet Details

Part number:

M52338FP

Manufacturer:

Mitsubishi

File Size:

136.10 KB

Description:

Interface-ic.
