M58482P, M58479P Datasheet - Mitsubishi

M58482P (M58479P / M58482P) CMOS Counter / Timer

The M58479P and M58482P are electronic timer ICs developed by aluminum-gate CMOS technology. Use of these ICs makes possible timer devices without mechanical elements, which have reduced power dissipation, superior reliability, and higher noise immunity. The M58479P *is specifically designed for.

M58482P Features

* low power dissipation. FEATURES

* Low power dissipation M58479P: 2mW (typ.1, 7.5mW (max.) M58482P: 200/J.W (tyP.), 750/J.W (max.)

* Superior noise immunity

* Single power supply with a zenor diode

* Internal RC oscillator

* Precise oscillation frequency regula

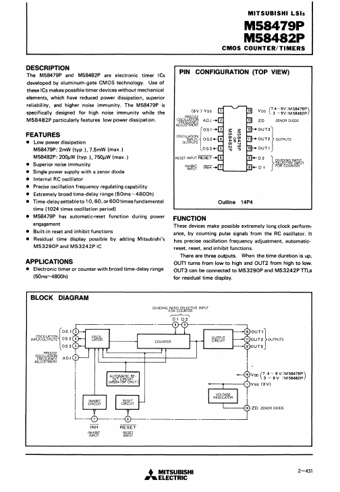

M58479P_Mitsubishi.pdf

M58482P Datasheet Preview — This datasheet PDF includes multiple part numbers: M58482P, M58479P. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M58482P, M58479P

Manufacturer:

Mitsubishi

File Size:

575.08 KB

Description:

(m58479p / m58482p) cmos counter / timer.

Note:

This datasheet PDF includes multiple part numbers: M58482P, M58479P.
Please refer to the document for exact specifications by model.
