M5L8288S Datasheet, Controller, Mitsubishi

M5L8288S Features

  • Controller
  • High-fanout outputs Command output IOL=32mA, IOH=-5mA Control output IOL= 16mA, IOH= -1 mA
  • Advanced command outputs (AIOWC and AMWC outputs)
  • Low power diss

PDF File Details

Part number:

M5L8288S

Manufacturer:

Mitsubishi

File Size:

486.19kb

Download:

📄 Datasheet

Description:

Bus controller. The M5L82888 is a semiconductor integrated circuit consisting of a bus controller and bus driver for the 8086 and 8088, 16-bit microp

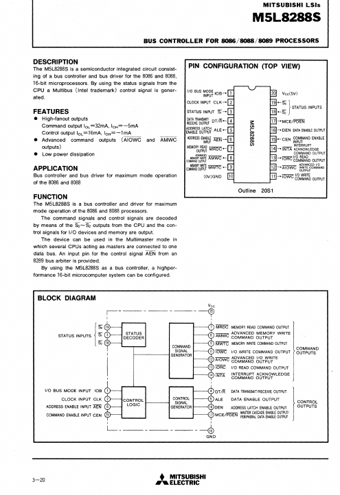

Datasheet Preview: M5L8288S 📥 Download PDF (486.19kb)
