M5M23128-xxxP Datasheet - Mitsubishi

128K-Bit ROM

M5M23128-xxxP Features

* 16384 word x 8-bit organization

* Access time _ 250ns (max)

* Two line control OE, CE

* Low power supply current {led Active .. 80mA (max) Standby . 30mA (max)

* Single 5V power supply

* 3-state output buffer

* Input and output TTL-compatib

M5M23128-xxxP General Description

The Mitsubishi M5M23128-XXXP is a 131072-bit maskprogrammable high speed read-only memory. The M5M23128-XXXP is fabricated by N-channel polysilicon gate technology and available in a 28-pin OIL package. It is interchangeable with the M5L27128K and Intel 27128 in read mode. The XXX in type code is a .

M5M23128-xxxP Datasheet (173.62 KB)

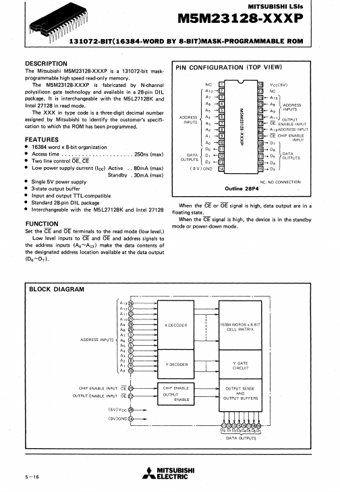

Preview of M5M23128-xxxP PDF

Datasheet Details

Part number:

M5M23128-xxxP

Manufacturer:

Mitsubishi

File Size:

173.62 KB

Description:

128k-bit rom.
