M5M23C64-xxxP - 64K-Bit ROM

Mitsubishi

The M5M23C64-xxxP by Mitsubishi is a 64K-Bit ROM. Below is the official datasheet preview.

📥 Download Datasheet

M5M23C64-xxxP 64K-Bit ROM by Mitsubishi - Datasheet Preview — Official preview page of the M5M23C64-xxxP 64K-Bit ROM datasheet (Mitsubishi).

Datasheet Details

Part number	M5M23C64-xxxP
Manufacturer	Mitsubishi
File Size	192.52 KB
Description	64K-Bit ROM
Datasheet	M5M23C64-xxxP-Mitsubishi.pdf

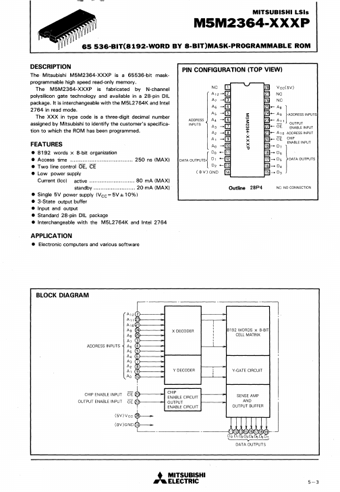

Additional preview pages of the M5M23C64-xxxP datasheet.

M5M23C64-xxxP Product details

Description

The Mitsubishi M5M2364-XXXP is a 65536-bit maskprogrammable high speed read-only memory.

Features

8192 words X 8-bit organization.
Access time 250 ns (MAX).
Two line control OE, CE.
Low power supply Current (Icc) active 80 mA (MAX) standby 20 mA (MAX).
Single 5V power supply (Vcc = 5V ± 10%).
3-State output buffer.
Input and output.
Standard 28-pin DIL package.
Interchangeable with the M5L2764K and Intel 2764 PIN.
