M5M4V16169DRT-8 Datasheet - Mitsubishi

M5M4V16169DRT-8 16MCDRAM:16M(1M-WORD BY 16-BIT) CACHED DRAM WITH 16K (1024-WORD BY 16-BIT) SRAM

1. The M5M4V16169DTP/RT is a 16M-bit Cached DRAM which integrates input registers, a 1,048,576-word by 16-bit dynamic memory array and a 1024- word by 16-bit static RAM array as a Cache memory (block size 8x16) onto a single monolithic circuit. The block data transfer between the DRAM and the data t.

MITSUBISHI LSIs M5M4V16169DTP/RT-7,-8,-10,-15 16MCDRAM:16M(1M-WORD BY 16-BIT) CACHED DRAM WITH 16K (1024-WORD BY 16-BIT) SRAM Preliminary This document is a preliminary Target Spec. and some of the contents are subject to change without notice. PINCONFIGURATION (TOP VIEW) Vcc DQCl DQCu CC1# CC0# WE# CS# CMd# CMs# K DQ0 Vss DQ1 DQ2 VddQ DQ3 Vss DQ4 VccQ DQ5 DQ6 Vss DQ7 MCL As0 As1 As2 RAS# CAS# DTD# Ad0 Ad1 Ad2 Vcc 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 19 20 21 22 23 24 25 26 27 28 29 30 31 .

M5M4V16169DRT-8 Features

* Type name M5M4V16169TP/RT-7 M5M4V16169TP/RT-8 M5M4V16169TP/RT-10 M5M4V16169TP/RT-15 SRAM Access/cycle 5.6ns/7ns 6.4ns/8ns 8.0ns/10ns 8.0ns/15ns DRAM Access/cycle 49ns/70ns 56ns/80ns 60ns/90ns 75ns/120ns Power Dissipation (Typ) DRAM: 530 SRAM: 860 DRAM: 500 SRAM: 800 DRAM: 430 SRAM: 660 DRAM: 330 SRA

M5M4V16169DRT-8 Datasheet (737.49 KB)

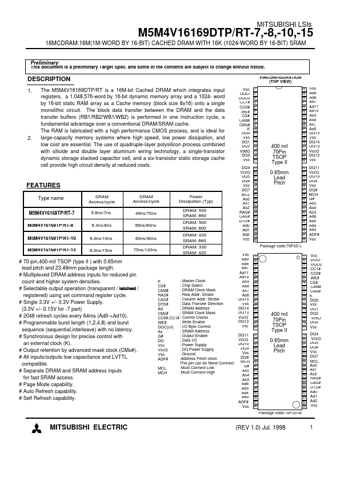

M5M4V16169DRT-8 Datasheet Preview — Preview of M5M4V16169DRT-8 PDF

M5M4V16169DRT-8 Datasheet Preview Page 2

M5M4V16169DRT-8 Datasheet Preview Page 3

Datasheet Details

Part number:

M5M4V16169DRT-8

Manufacturer:

Mitsubishi

File Size:

737.49 KB

Description:

16mcdram:16m(1m-word by 16-bit) cached dram with 16k (1024-word by 16-bit) sram.
