M5M4V64S20ATP-8A

64M (4-BANK x 4194304-WORD x 4-BIT) Synchronous DRAM

M5M4V64S20ATP-8A Features

* - Single 3.3v±0.3v power supply - Clock frequency 125MHz /100MHz - Fully synchronous operation referenced to clock rising edge - 4 bank operation controlled by BA0, BA1 (Bank Address) - /CAS latency- 2/3 (programmable) - Burst length- 1/2/4/8/Full Page (programmable) - Burst type- sequential / inter

M5M4V64S20ATP-8A General Description

The M5M4V64S20ATP is a 4-bank x 4194304-word x 4-bit Synchronous DRAM, with LVTTL interface. All inputs and outputs are referenced to the rising edge of CLK. The M5M4V64S20ATP achieves very high speed data rate up to 125MHz, and is suitable for main memory or graphic memory in computer systems. Vdd .

M5M4V64S20ATP-8A Datasheet (1.13 MB)

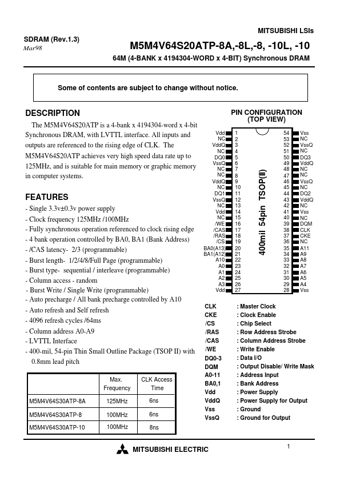

Preview of M5M4V64S20ATP-8A PDF

Datasheet Details

Part number:

M5M4V64S20ATP-8A

Manufacturer:

Mitsubishi

File Size:

1.13 MB

Description:

64m (4-bank x 4194304-word x 4-bit) synchronous dram.
MITSUBISHI LSIs SDRAM (Rev.1.3) Mar98 M5M4V64S20ATP-8A,-8L,-8, -10L, -10 64M (4-BANK x 4194304-WORD x 4-BIT) Synchronous DRAM Some of contents are s.
