M5M5T5636UG-20

18874368-BIT(524288-WORD BY 36-BIT) NETWORK SRAM

M5M5T5636UG-20 Features

* Fully registered inputs and outputs for pipelined operation

* Fast clock speed: 250, 225, and 200 MHz

* Fast access time: 2.6, 2.8, 3.2 ns

* Single 2.5V -5% and +5% power supply VDD

* Separate VDDQ for 2.5V or 1.8V I/O

* Individual byte write (BWa# -

M5M5T5636UG-20 General Description

The M5M5T5636UG is a family of 18M bit synchronous SRAMs organized as 524288-words by 36-bit. It is designed to eliminate dead bus cycles when turning the bus around between reads and writes, or writes and reads. Mitsubishi's SRAMs are fabricated with high performance, low power CMOS technology, pro.

M5M5T5636UG-20 Datasheet (494.93 KB)

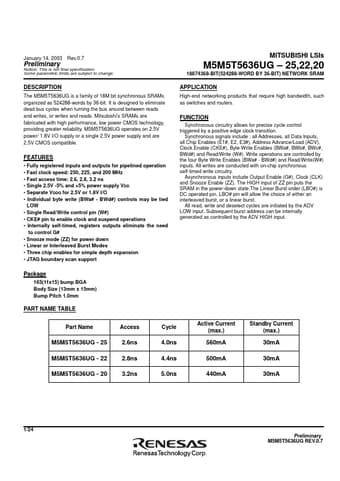

Preview of M5M5T5636UG-20 PDF

Datasheet Details

Part number:

M5M5T5636UG-20

Manufacturer:

Mitsubishi

File Size:

494.93 KB

Description:

18874368-bit(524288-word by 36-bit) network sram.
