M62021FP Datasheet - Mitsubishi

M62021FP SYSTEM RESET IC WITH SWITCH FOR MEMORY BACK-UP

The M62021 is a system IC that controls the memory backup function of SRAM and microcomputer (internal RAM). The IC outputs reset signals(RES/RES) to a microcomputer at power-down and power failure.It also shifts the power supply to RAM from main to backup,outputs a signal (CS) that invokes standby .

M62021FP Features

* Built-in switch for selection between main power supply and backup power supply to RAM.

* Small difference between input and output voltage (IOUT=80mA,VIN=5V)0.2V typ

* Detection voltage (power supply monitor voltage)4.40VĀ±0.2V

* Chip select signal output(CS) Two channe

M62021FP Datasheet (112.55 KB)

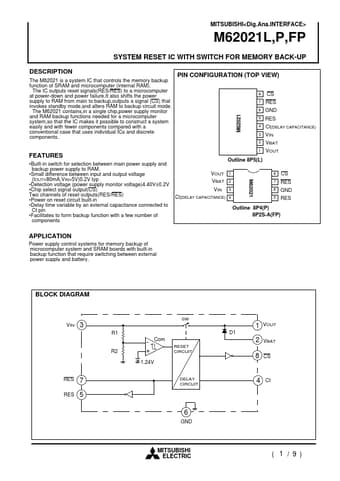

Preview of M62021FP PDF
M62021FP Datasheet Preview Page 2 M62021FP Datasheet Preview Page 3

Datasheet Details

Part number:

M62021FP

Manufacturer:

Mitsubishi

File Size:

112.55 KB

Description:

System reset ic with switch for memory back-up.
