M62022FP - VOLTAGE DETECTING/SYSTEM RESETTING IC

Product Overview

Mitsubishi

Datasheet Details

Part number	M62022FP
Manufacturer	Mitsubishi
File Size	18.13 KB
Description	VOLTAGE DETECTING/SYSTEM RESETTING IC
Datasheet	M62022FP Datasheet

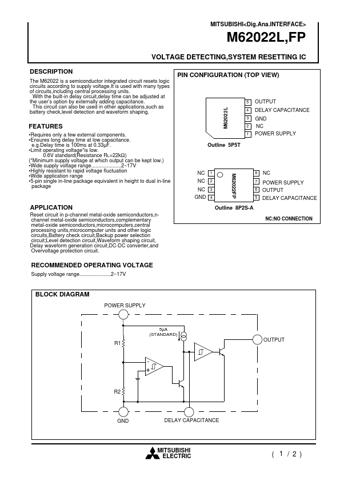

Additional preview pages of the M62022FP datasheet.

Product details

Description

The M62022 is a semiconductor integrated circuit resets logic circuits according to supply voltage.It is used with many types of circuits,including central processing units.

Features

Requires only a few external components.
Ensures long delay time at low capacitance. e. g. Delay time is 100ms at 0.33µF.
Limit operating voltage.
is low. 0.6V standard(Resistance RL=22kΩ) (.
Minimum supply voltage at which output can be kept low. ).
Wide supply voltage range2~17V.
Highly resistant to rapid voltage fluctuation.
Wide.
