M62023L Datasheet - Mitsubishi

SYSTEM RESET-IC

M62023L Features

* Built-in switch for selection between main power supply and backup power supply to RAMs

* Small difference between input and output voltages (IOUT=80mA, VIN=3V) : 0.15V typ

* Detection voltage (power supply monitor voltage) : 2.57V typ

* Chip select signal output (C

M62023L General Description

The M62023L/P/FP is a system reset IC that controls the memory backup function of an SRAM and an embedded RAM of a microcontroller. The IC outputs reset signals (RES/RES) to a microcontroller at power-down and power failure. It also shifts the power supply to RAMs from main to backup, outputs a sign.

M62023L Datasheet (47.69 KB)

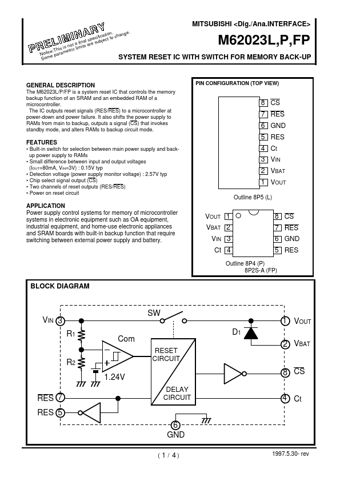

M62023L Datasheet Preview — Preview of M62023L PDF

Datasheet Details

Part number:

M62023L

Manufacturer:

Mitsubishi

File Size:

47.69 KB

Description:

System reset-ic.
