M62343P

8-BIT 3CH D-A CONVERTER WITH BUFFER AMPLIFIERS

Mitsubishi

M62343P Features

* 10bit serial data input (3-wire serial transfer method)

* Wide output voltage range Nearly between ground and Vcc(0 to 5V)

* High output current drive capability over ±1.0mA APPLICATION Conversion from digital data to analog control data for both consumer and industrial

M62343P General Description

The M62343P,FP is a CMOS 3 channel D-A converter with output buffer amplifiers. It can communicate with a microcontroller via few wiring thanks to the adoption of the three-line DI,CLK,LD. The output buffer amplifier employs AB class output with sinking and sourcing capability of more than 1.0mA , a.

M62343P Datasheet (25.71 KB)

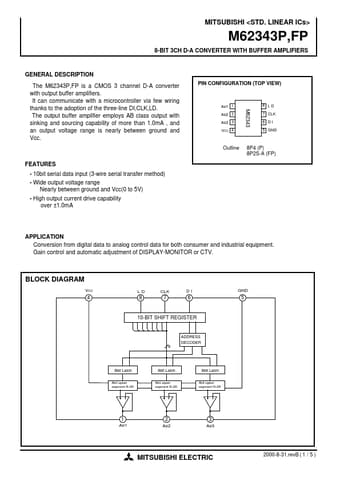

M62343P Datasheet Preview — Preview of M62343P PDF

Datasheet Details

Part number:

M62343P

Manufacturer:

Mitsubishi

File Size:

25.71 KB

Description:

8-bit 3ch d-a converter with buffer amplifiers.
