M62342GP - 2-Channel D-A Converter

M62342GP Description

M62342GP 8-Bit, 2-Channel D-A Converter (Buffered) REJ03F0074-0100Z Rev.1.0 Sep.19.2003 .
The M62342GP is a CMOS-structure semiconductor integrated circuit incorporating two 8-bit D-A converter channels with output buffer op-amps.

M62342GP Features

* Data transfer format 10-bit serial data input type
* Output buffer op-amps Operable over entire voltage range from almost ground to VCC (0 to 5 V)

📥 Download Datasheet

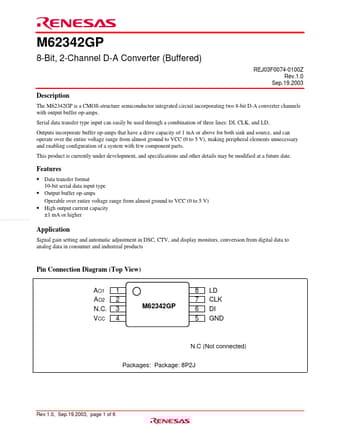

Preview of M62342GP PDF
datasheet Preview Page 2 datasheet Preview Page 3
