M65827FP - 10-TIMES SPEED CD-DSP

Product Overview

Mitsubishi

Datasheet Details

Part number	M65827FP
Manufacturer	Mitsubishi
File Size	215.61 KB
Description	10-TIMES SPEED CD-DSP
Datasheet	M65827FP Datasheet

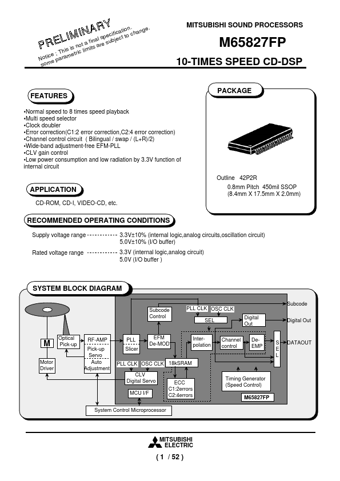

Additional preview pages of the M65827FP datasheet.

Product details

Description

18 Kbit SRAM ±8 frames jitter margin Adjustment-free EFM-PLL Wide-band lock range(1 8 times) HF data slicer EFM demodulator Frame synchronization detection / protection / interpolation Frame synchronization monitor Subcode Q register CRC checker Subcode synchronous pattern detector (S0 and S1) Emphasis flag detector and digital de-emphasis filter Serial interface of subcod

Features

Normal speed to 8 times speed playback.
Multi speed selector.
Clock doubler.
Error correction(C1:2 error correction,C2:4 error correction).
Channel control circuit ( Bilingual / swap / (L+R)/2).
Wide-band adjustment-free EFM-PLL.
CLV gain control.
Low power consumption and low radiation by 3.3V function of internal circuit Outline 42P2R.
