M65818AFP - Digital Amplifier Processor of S-Master Technology

M65818AFP Description

M65818AFP Digital Amplifier Processor of S-Master * Technology REJ03F0019-0100Z Rev.1.00 Sep.04.2003 .
The M65818AFP is a S-Master technique processor for digital amplifier enable to convert from multi liner-PCM digital input signal to high precise swit.

M65818AFP Features

* Built-in 24bit Sampling Rate Converter. Input Signal Sampling Rate from 32KHz to 192KHz(24bit Maximum). 4 kinds of Digital Input Format.
* Built-in L/R Independent Digital Gain Control.
* Built-in Soft Mute Function with Exponential Approximate-Curve.
* Corresponden

M65818AFP Applications

* Master Clock Primary Clock: 256Fsi/512Fsi Secondary Clock: 1024Fso/512Fso
* Input Signal Format: MSB First Right Justified(16/20/24bit),MSB First Left Justified(24bit) LSB First Right Justified(24bit),I2S(24bit)
* Input Signal Sampling Rate from 32kHz to 192kHz.
* 8

📥 Download Datasheet

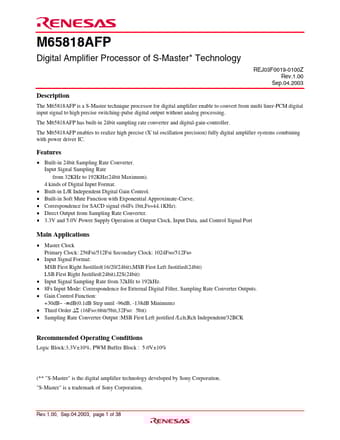

Preview of M65818AFP PDF
datasheet Preview Page 2 datasheet Preview Page 3
