M65831FP - DIGITAL ECHO

Product Overview

Mitsubishi

Part number	M65831FP
Manufacturer	Mitsubishi
File Size	80.45 KB
Description	DIGITAL ECHO
Datasheet	M65831FP Datasheet

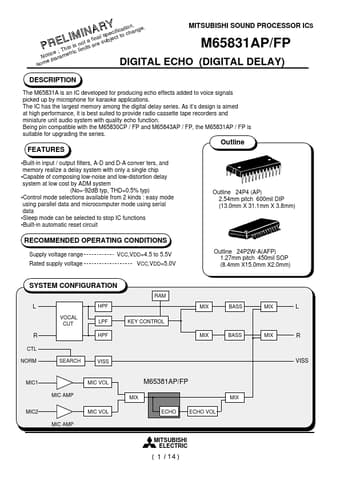

Additional preview pages of the M65831FP datasheet.

The M65831A is an IC developed for producing echo effects added to voice signals picked up by microphone for karaoke applications.

Built-in input / output filters, A-D and D-A conver ters, and memory realize a delay system with only a single chip.
Capable of composing low-noise and low-distortion delay system at low cost by ADM system (No=-92dB typ, THD=0.5% typ).
Control mode selections available from 2 kinds : easy mode using parallel data and microcomputer mode using serial data.
Sleep mode can be selected to stop IC functions.
Built-in automatic reset circuit Outline 24P4 (AP) 2.
