M68703MA Datasheet - Mitsubishi

M68703MA FM MOBILE RADIO

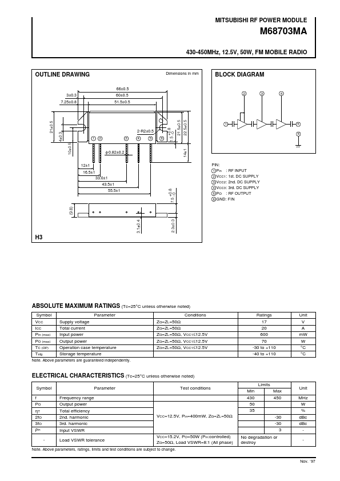

MITSUBISHI RF POWER MODULE M68703MA 430-450MHz, 12.5V, 50W, FM MOBILE RADIO OUTLINE DRAWING 66±0.5 3±0.3 7.25±0.8 60±0.5 51.5±0.5 Dimensions in mm BLOCK DIAGRAM 2 3 4 1 5 6 2-R2±0.5 1 2 3 4 5 6 φ 0.82±0.2 12±1 16.5±1 33.0±1 43.5±1 55.5±1 PIN: 1 Pin : RF INPUT 2 VCC1 : 1st. DC SUPPLY 3 VCC2 : 2nd. DC SUPPLY 4 VCC3 : 3rd. DC SUPPLY 5 PO : RF OUTPUT 6 GND: FIN H3 ABSOLUTE MAXIMUM RATINGS (Tc=25°C unless otherwise noted) Symbol VCC ICC Pin (max) PO (max) TC (OP) Tstg Parameter Supply vo.

M68703MA_MitsubishiElectricSemiconductor.pdf

M68703MA Datasheet Preview — Preview of M68703MA PDF

Datasheet Details

Part number:

M68703MA

Manufacturer:

Mitsubishi

File Size:

14.06 KB

Description:

Fm mobile radio.
