MM1671 (MM1671 - MM1677) Low Voltage Operating 75hom Driver

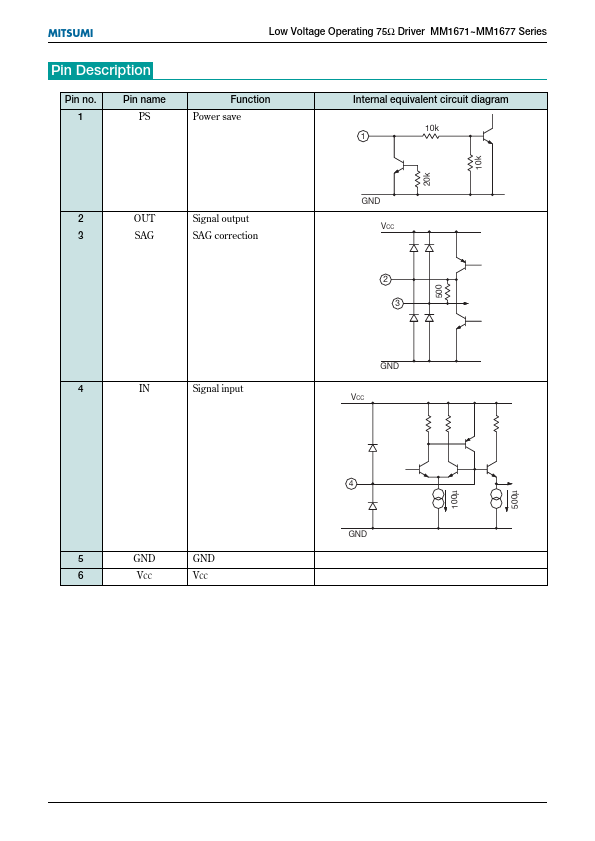

Pin no. 1 Pin name PS Function Power save 10k 1 10k Internal equivalent circuit diagram GND 2 3 OUT SAG Signal output SAG correction VCC 2 3 500 GND 4 IN Signal input VCC 4 100µ 500µ GND 5 6 GND VCC GND VCC 20k MITSUMI Low Voltage Operating 75Ω Driver MM1671~MM1677 Series Absolut.

MITSUMI Low Voltage Operating 75Ω Driver MM1671~MM1677 Series Low Voltage Operating 75Ω Driver Monolithic IC MM1671~MM1677 Series Outline July 8, 2003 This IC is a 75Ω driver with a built-in LPF that can operate at low voltage. Operationg supply voltage supports 3V and 5V systems, and it is ideal for video signal output in devices ranging from portable equipment such as digital still cameras to stationary equipment such as DVD players. It incorporates a high-performance 4thorder LPF, which .

MM1671 Features

* 1. Operating supply voltage 2. Operating ambient temperature 3. Current consumption (no signal) 4. Current consumption in power-save mode 5. High-precision voltage gain 6. Includes a high-performance 4th-order LPF 2.8~5.5V (supports 3V and 5V systems) -40~85°C 7.0mA typ. 1.0µA max. 6±0.3dB at 100kHz

MM1671 Datasheet (102.88 KB)

MM1671 Datasheet Preview — Preview of MM1671 PDF

Datasheet Details

Part number:

MM1671

Manufacturer:

Mitsumi Electronics

File Size:

102.88 KB

Description:

(mm1671 - mm1677) low voltage operating 75hom driver.
