MM1631

I2C Bus Controlled 11-Input 3-Output Audio Switch

MM1631 Features

* 1. The desired input can be selected for each of the 3 independent output lines. 2. Wide dynamic range (3vrms). 3. Serial control possible through I2C BUS. 4. Forced mute enabled by external pin. 5. Built-in Power Save function. 6. I2C BUS line maintains high impedance when power is off. 7. No outpu

MM1631 General Description

Pin no. 1~18 33~36 Pin name L1~L11 R1~R11 Functions Line input of Audio VCC Ref 28k 30k Input Internal equivalent circuit diagram 25~30 LOUT1~3 ROUT1~3 Line output of Audio VCC 50 Output 21 ADR Slave address select pin VCC ADR 22 SDA Data input of I2C BUS VCC SDA 23 SCL CLK input o.

MM1631 Datasheet (141.42 KB)

Preview of MM1631 PDF

Datasheet Details

Part number:

MM1631

Manufacturer:

Mitsumi Electric

File Size:

141.42 KB

Description:

I2c bus controlled 11-input 3-output audio switch.
www.DataSheet4U.com MITSUMI I2C BUS - Controlled 11-Input 3-Output Audio Switch MM1631 I2C BUS - Controlled 11-Input 3-Output Audio Switch Monolith.

📁 Related Datasheet

MM1630 - I2C Bus Control of broadband video switch (MITSUMI)
for video Topr= 25 S IC 8 TV 4 PDP I2C BUS 5 MM1631 1 S 2 3 4 5 6 7 4 50MHz 8 I2C BUS 0dB D 5 1 2 FPD 6dB OUT1 OUT2 OUT4 13.5MHz LPF SLEW S.

MM1639 - Lithium-Ion Battery Charge Control (MITSUMI)
MITSUMI Lithium-Ion Battery Charge Control (with timers) MM1639 Lithium-Ion Battery Charge Control (with timers) Monolithic IC MM1639 Outline This .

MM160 - Single Axis Stepper Motor Driver Technical Reference Manual (SOC Robotics)
MM160 Technical Reference Manual MM160 Single Axis Stepper Motor Driver 1/16th Microstepping 3.5A Bipolar Driver Technical Reference Manual PCB Rev 1..

MM1623 - Video Signal Driver (Mitsumi)
MITSUMI Video Signal Driver for DVD Players MM1623 Video Signal Driver for DVD Players .. Monolithic IC MM1623 October 8, 2001 O.

MM1623XFBE - Video Signal Driver (Mitsumi Electric)
MITSUMI Video Signal Driver for DVD Player MM1623XFBE Video Signal Driver for DVD Player Monolithic IC MM1623XFBE Outline This 6ch video driver IC .

MM1624 - (MM1424 / MM1624) IC for XO (Mitsumi Electronics)
MITSUMI IC for XO MM1424, MM1624 IC for XO Monolithic IC MM1424, MM1624 Series Outline This is a low current consumption, low operating voltage XO .

MM1646XH - 5ch Motor Driver (Mitsumi Electric)
MITSUMI 5ch Motor Driver MM1646XH 5ch Motor Driver Monolithic IC MM1646XH Outline This IC is a motor driver IC for DVD players with 5ch built in (f.

MM1661F - 1000mA Regulator (Mitsumi Electric)
MITSUMI 1000mA Regulator MM166 F 1000mA Regulator Monolithic IC MM166 Outline F This IC is a small, stable power supply with output voltage prec.

TAGS

MM1631 I2C Bus Controlled 11-Input 3-Output Audio Switch Mitsumi Electric

Image Gallery

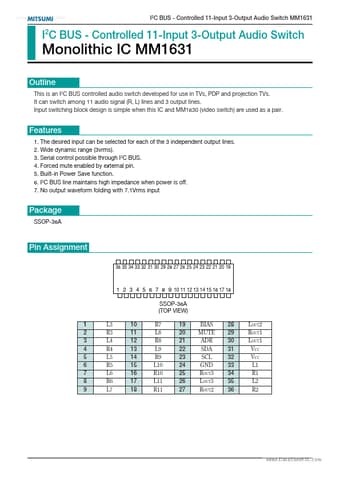

MM1631 Datasheet Preview Page 2 MM1631 Datasheet Preview Page 3
