MM1624

(MM1424 / MM1624) IC for XO

MM1624 Features

* 1. Low current consumption. 1.5mA max. (Vcc = 2.8V) 2. Low power supply operating voltage. Vcc = 2.3 to 3.3V 3. On-chip Colpitz oscillation capacitor

* On-chip bias resistor. 4. Low phase noise. -140dBc (@1kHz) 5. Ultra-small package type. Package SC-82 (MM1424CUXX) MCSP-4A (MM1424CCXX) WLCSP-4

MM1624 General Description

Pin No MM1424CUXX MM1424CCXX MM1624CLXX 1 2 3 4 2 1 4 3 1 2 3 4 (Ta=25°C) Symbol TSTG TOPR VCC max. VIN max. Pd Ratings -40~+125 -30~+80 5.5 0< = VCC = VIN < 150(MM1424CUXX) Power dissipation 180(MM1424CCXX) Unit °C °C V V mW Pin name X'tal GND VOUT VCC X'tal pin GND Output pin Supply voltage Functi.

MM1624 Datasheet (84.74 KB)

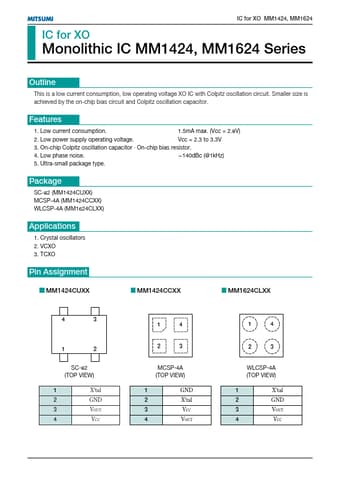

Preview of MM1624 PDF

Datasheet Details

Part number:

MM1624

Manufacturer:

Mitsumi Electronics

File Size:

84.74 KB

Description:

(mm1424 / mm1624) ic for xo.
MITSUMI IC for XO MM1424, MM1624 IC for XO Monolithic IC MM1424, MM1624 Series Outline This is a low current consumption, low operating voltage XO .
