A-41671-C06A228

3.96mm (.156) Pitch KK Header

A-41671-C06A228 Features

* Matin

A-41671-C06A228 General Description

0416710028 Active 3.96mm (.156") Pitch KK® Header, Breakaway, Vertical, Square Pin, with Friction Lock, 6 Circuits, 0.76µm (30µ") Gold (Au) Selective Plating Documents: 3D Model Drawing (PDF) Product Specification PS-08-50 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only .

A-41671-C06A228 Datasheet (298.23 KB)

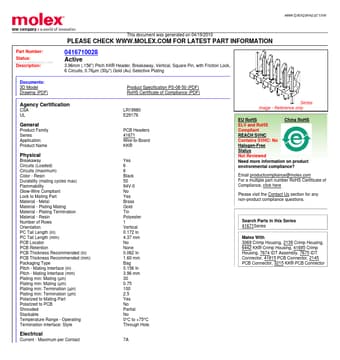

Preview of A-41671-C06A228 PDF

Datasheet Details

Part number:

A-41671-C06A228

Manufacturer:

Molex Electronics

File Size:

298.23 KB

Description:

3.96mm (.156) pitch kk header.
