02-09-1117, Pin and Socket Connectors

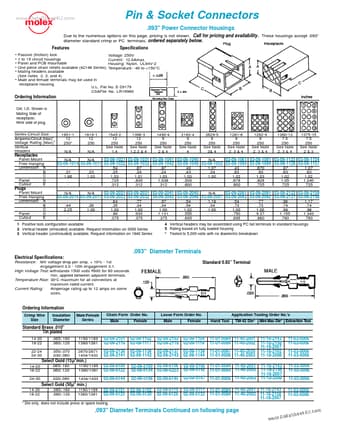

www.DataSheet4U.com Pin & Socket Connectors .093" Power Connector Housings Specifications Due to the numerous options on this page, pricing is not s.

datasheet Preview Page 1 from Datasheet4u.com

02-09-1117_Molex.pdf

02-09-1117 Datasheet Preview — Preview of 02-09-1117 PDF

Datasheet Details

Part number:

02-09-1117

Manufacturer:

Molex

File Size:

346.32 KB

Description:

Pin and Socket Connectors

Features

* Passive (friction) lock Voltage: 250V
* 1 to 15 circuit housings Current: 12.0Amax.
* Panel and PCB mountable Housing: Nylon, UL94V-2
* One piece strain reliefs available (42148 Series) Temperature: -40 to +150 o C
* Mating headers available (See notes 2, 3,

Applications

* to telecommunications.
* 36 circuit on a .165 pitch (4.19mm) .062” Diameter Terminals Electrical Specifications: Resistance: MV voltage drop per amp on mated terminal, + 10% - 1st engagement 3.2 10th engagement 3.4. High Voltage Test: Withstands 1500 volts RMS for 60 seconds min. applied betwe
