02-09-xxxx Datasheet, connectors equivalent, Molex

02-09-xxxx Features

  • Connectors
  • Passive (friction) lock Voltage: 250V
  • 1 to 15 circuit housings Current: 12.0Amax.
  • Panel and PCB mountable Housing: Nylon, UL94V-2
  • One piece strai

PDF File Details

Part number:

02-09-xxxx

Manufacturer:

Molex

File Size:

346.32kb

Download:

📄 Datasheet

Description:

Pin and socket connectors.

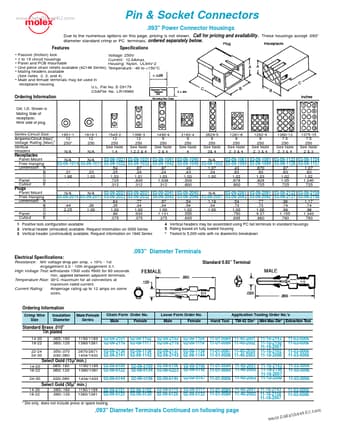

Datasheet Preview: 02-09-xxxx 📥 Download PDF (346.32kb)
Page 2 of 02-09-xxxx Page 3 of 02-09-xxxx

02-09-xxxx Application

  • Applications to telecommunications.
  • 36 circuit on a .165 pitch (4.19mm) .062” Diameter Terminals Electrical Specifications: Resistance:
