M75012 Datasheet, Detector, Mosdesign

M75012 Features

• Detector for a photoelectric type smoke detector. This device can be used in conjunction with an infrared photoelectric chamber to sense scattered light from smoke particles. A variable-gain pho

PDF File Details

Part number:

M75012

Manufacturer:

Mosdesign

File Size:

195.66kb

Download:

📄 Datasheet

Description:

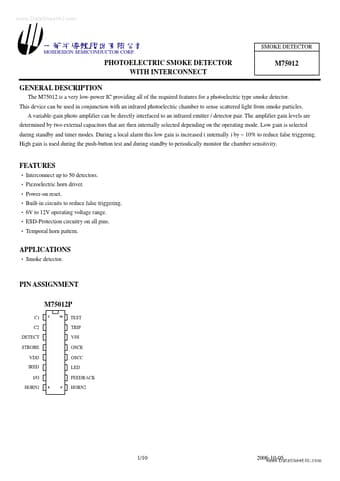

Photoelectric smoke detector. M75012 The M75012 is a very low-power IC providing all of the required features for a photoelectric type smoke detector. This devic

M75012 Application

• Applications ‧ Smoke detector. PIN ASSIGNMENT M75012P C1 C2 DETECT STROBE VDD IRED I/O HORN1 8 9 1 16 TEST TRIP VSS OSCR OSCC LED FEEDBACK HORN2
