M750D1, M750 Datasheet - SGS

M750D1 Counter

SIMOS INTEGRATED CIRCUIT M750 PRELIMINARY DATA STAGE COUNTER WITH INTERMEDIATE OUTPUT AT THE 16th STAGE LOW QUIESCENT POWER DISSIPATION , WIDE SUPPLY VOLTAGE RANGE: 3 to 17V .FULLY PROTECTED INPUTS INVERTER AVAILABILITY FOR CRYSTAL OSCILLATOR TIMING APPLICATION ADJUSTABLE FREQUENCY DIVIDER IN 127 STEPS TEST OUTPUT AVAI LAB LE MOTOR DRIVE BRIDGE CONFIGURATION OUTPUT e M750 is a 23 stage binary counter in COS/MOS technology in a single monolithic chip. An inverter _ available for crystal oscilla.

M750-SGS.pdf

This datasheet PDF includes multiple part numbers: M750D1, M750. Please refer to the document for exact specifications by model.

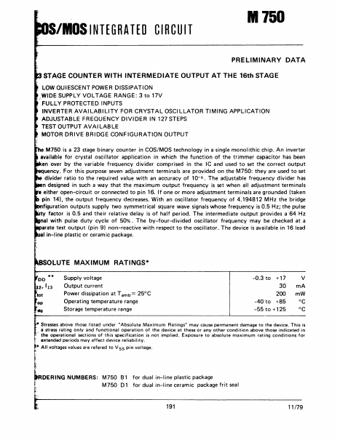

M750D1 Datasheet Preview Page 2 M750D1 Datasheet Preview Page 3

Datasheet Details

Part number:

M750D1, M750

Manufacturer:

SGS

File Size:

121.46 KB

Description:

Counter.

Note:

This datasheet PDF includes multiple part numbers: M750D1, M750.
Please refer to the document for exact specifications by model.
