V43658R04VXTG-10PC - 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE

Datasheet Summary

Description

The V43658R04V memory module is organized 8,388,608 x 64 bits in a 168 pin dual in line memory module (DIMM).

The 8M x 64 memory module uses 4 Mosel-Vitelic 8M x 16 SDRAM.

Features

168 Pin Unbuffered 8,388,608 x 64 bit Oganization SDRAM DIMM.
Utilizes High Performance 128 Mbit, 8M x 16 SDRAM in TSOPII-54 Packages.
Fully PC Board Layout Compatible to INTEL’S Rev 1.0 Module Specification.
Single +3.3V (± 0.3V) Power Supply.
Programmable CAS Latency, Burst Length, and Wrap Sequence (Sequential & Interleave).
Auto Refresh (CBR) and Self Refresh.
All Inputs, Outputs are LVTTL Compatible.
4096 Refresh Cycles every 64 ms.
Serial Prese.

Mosel Vitelic Corp

📥 Download Datasheet

Datasheet Details

Part number	V43658R04VXTG-10PC
Manufacturer	Mosel Vitelic Corp
File Size	207.71 KB
Description	3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE
Datasheet	V43658R04VXTG-10PC Datasheet

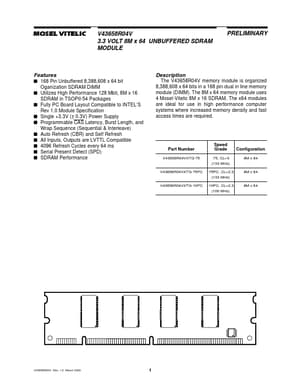

Additional preview pages of the V43658R04VXTG-10PC datasheet.

📁 Similar Datasheet

V43644Y04VTG-10PC - SDRAM UNBUFFERED SODIMM (Mosel Vitelic)
V430CH8 - Metal-Oxide Varistors (Littelfuse)
V430MA3A - Metal-Oxide Varistors (Littelfuse)
V430MA3A - Varistor Products (Littelfuse)
V430MA7B - Metal-Oxide Varistors (Littelfuse)
V430MA7B - Varistor Products (Littelfuse)
V430RA16 - Varistor Products (Littelfuse)
V430RA22 - Varistor Products (Littelfuse)
V430RA8 - Varistor Products (Littelfuse)
V430ZA05 - Low to Medum Voltage (Littelfuse)

Other Datasheets by Mosel Vitelic Corp

V43658R04VXTG-75 - 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE
V43658R04VXTG-75PC - 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE
V43658R04V - 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE
V43658Y04VATG-10PC - 3.3 VOLT 8M x 64 HIGH PERFORMANCE 100 MHZ SDRAM UNBUFFERED SODIMM
V43658Y04VATG-75 - 64MB 168-PIN 133 MHZ SDRAM UNBUFFERED SODIMM 3.3 VOLT/ 8M x 64
V43658Y04VATG-75PC - 3.3 VOLT 8M x 64 HIGH PERFORMANCE 133 MHZ SDRAM UNBUFFERED SODIMM
V436516R04VATG-10PC - 3.3 VOLT 16M x 64 using 8M x 16 PC100 UNBUFFERED SDRAM MODULE
V436516R04VATG-75 - 3.3 VOLT 16M x 64 using 8M x 16 PC133 UNBUFFERED SDRAM MODULE

Full PDF Text Transcription

Click to expand full text

MOSEL VITELIC V43658R04V 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE PRELIMINARY Features ■ 168 Pin Unbuffered 8,388,608 x 64 bit Oganization SDRAM DIMM ■ Utilizes High Performance 128 Mbit, 8M x 16 SDRAM in TSOPII-54 Packages ■ Fully PC Board Layout Compatible to INTEL’S Rev 1.0 Module Specification ■ Single +3.3V (± 0.3V) Power Supply ■ Programmable CAS Latency, Burst Length, and Wrap Sequence (Sequential & Interleave) ■ Auto Refresh (CBR) and Self Refresh ■ All Inputs, Outputs are LVTTL Compatible ■ 4096 Refresh Cycles every 64 ms ■ Serial Present Detect (SPD) ■ SDRAM Performance Description The V43658R04V memory module is organized 8,388,608 x 64 bits in a 168 pin dual in line memory module (DIMM). The 8M x 64 memory module uses 4 Mosel-Vitelic 8M x 16 SDRAM.
