V43658Y04VATG-75 - 64MB 168-PIN 133 MHZ SDRAM UNBUFFERED SODIMM 3.3 VOLT/ 8M x 64

Mosel Vitelic Corp

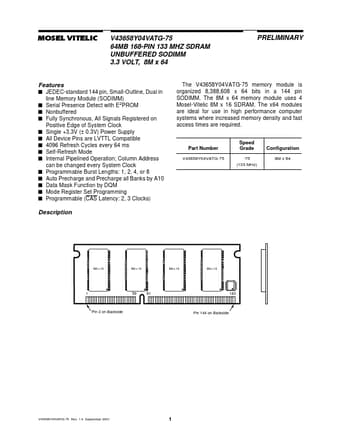

V43658Y04VATG-75 Datasheet Preview — Preview of V43658Y04VATG-75 PDF

Datasheet Details

Part number	V43658Y04VATG-75
Manufacturer	Mosel Vitelic Corp
File Size	258.12 KB
Description	64MB 168-PIN 133 MHZ SDRAM UNBUFFERED SODIMM 3.3 VOLT/ 8M x 64
Datasheet	V43658Y04VATG-75_MoselVitelicCorp.pdf

V43658Y04VATG-75 Product details

Description

8M x 16 8M x 16 8M x 16 8M x 16 1 59 61 143 Pin 2 on Backside Pin 144 on Backside V43658Y04VATG-75 Rev.1.4 September 2001 1 MOSEL VITELIC Pin Configurations (Front Side/Back Side) Pin 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Front VSS VSS DQ0 DQ32 DQ1 DQ33 DQ2 DQ34 DQ3 DQ35 VDD VDD DQ4 DQ36 DQ5 DQ37 DQ6 DQ38 DQ7 DQ39 VSS VSS DQMB0 DQMB4 Pin 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 Front DQMB1 DQMB5 VDD VDD A0 A3 A1 A4 A2 A5 VSS V

Features

s JEDEC-standard 144 pin, Small-Outline, Dual in line Memory Module (SODIMM) s Serial Presence Detect with E2PROM s Nonbuffered s Fully Synchronous, All Signals Registered on Positive Edge of System Clock s Single +3.3V (± 0.3V) Power Supply s All Device Pins are LVTTL Compatible s 4096 Refresh Cycles every 64 ms s Self-Refresh Mode s Internal Pipelined Operation; Column Address can be changed every System Clock s Programmable Burst Lengths: 1, 2, 4, or 8 s Auto Precharge and Precharge all Banks.
