V53C16256SH - 256K X 16 FAST PAGE MODE CMOS DYNAMIC RAM WITH SELF REFRESH

V53C16256SH Description

MOSEL VITELIC V53C16256SH 256K X 16 FAST PAGE MODE CMOS DYNAMIC RAM WITH SELF REFRESH PRELIMINARY HIGH PERFORMANCE Max.RAS Access Time, (tRAC) Max.
The V53C16256SH is a 262,144 x 16 bit highperformance CMOS dynamic random access memory.

V53C16256SH Features

* s 256K x 16-bit organization s Fast Page Mode for a sustained data rate of 43 MHz s RAS access time: 40, 50 ns s Dual CAS Inputs s Low power dissipation s Read-Modify-Write, RAS-Only Refresh, CAS-Before-RAS Refresh, and Self Refresh s Refresh Interval: 512 cycles/8 ms s Available in 40-pin 400 mil S

V53C16256SH Applications

* Device Usage Chart Operating Temperature Range 0°C to 70°C Package Outline K
* T
* Access Time (ns) 40
* 50
* Power Std.
* Temperature Mark Blank V53C16256SH Rev. 0.1 December 1998 1 MOSEL VITELIC 40-Pin Plastic SOJ PIN CONFIGURATION Top View Vcc I/O1 I/O

📥 Download Datasheet

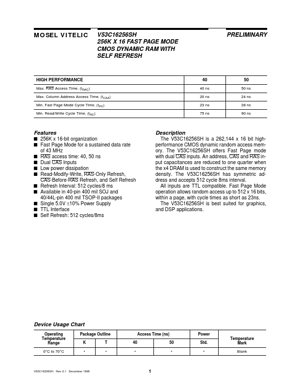

Preview of V53C16256SH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V53C16256SH
Manufacturer
Mosel Vitelic Corp
File Size
145.84 KB
Datasheet
V53C16256SH_MoselVitelicCorp.pdf
Description
256K X 16 FAST PAGE MODE CMOS DYNAMIC RAM WITH SELF REFRESH
