V62C318256

2.7 VOLT 32K X 8 STATIC RAM

V62C318256 Datasheet (78.03 KB)

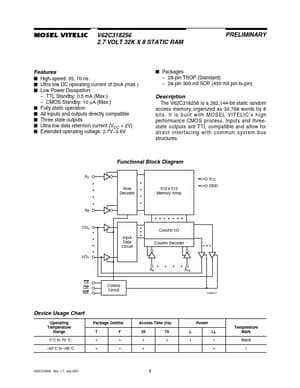

Preview of V62C318256 PDF Datasheet

Datasheet Details

Part number:

V62C318256

Manufacturer:

Mosel Vitelic Corp

File Size:

78.03 KB

Description:

2.7 volt 32k x 8 static ram.

V62C318256 Features

* I High-speed: 35, 70 ns I Ultra low DC operating current of 2mA (max.) I Low Power Dissipation:

* TTL Standby: 0.5 mA (Max.)

* CMOS Standby: 10 µA (Max.) I Fully static operation I All inputs and outputs directly compatible I Three state outputs I Ultra low data retention current (VC

V62C318256 General Description

The V62C318256 is a 262,144-bit static random access memory organized as 32,768 words by 8 bits. It is built with MOSEL VITELIC’s high performance CMOS process. Inputs and threestate outputs are TTL compatible and allow for direct interfacing with common system bus structures. Functional Block Diag.
