17HS4401 Datasheet - MotionKing

17HS4401 2 Phase Hybrid Stepper Motor

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 17HS series-Size 42mm(1.8 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Step Angle (deg) Motor Length (mm) Rated Phase Phase Current Resistance Inductance (A) (ohm) (mH) 17HS2408 1.8 28 0.6 8 10 17HS3401 1.8 34 1.3 2.4 2.8 17HS3410 1.8 34 1.7 1.2 1.8 17HS3430 1.8 34 0.4 30 35 17HS3630 1.8 34 0.4 30 18 17HS3.

17HS4401 Datasheet (94.93 KB)

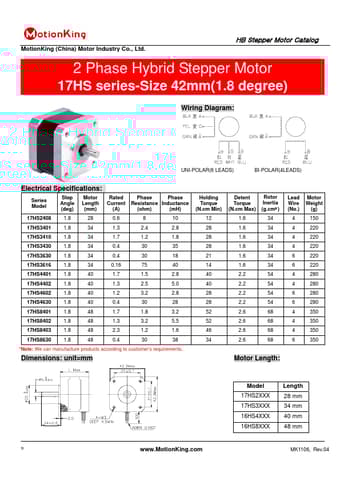

Preview of 17HS4401 PDF

Datasheet Details

Part number:

17HS4401

Manufacturer:

MotionKing

File Size:

94.93 KB

Description:

2 phase hybrid stepper motor.
