23H2A7430 Datasheet - MotionKing

23H2A7430 2 Phase Hybrid Stepper Motor

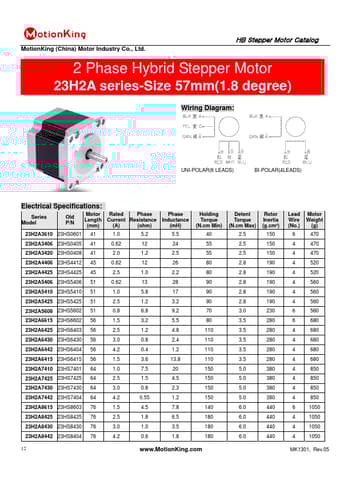

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 23H2A series-Size 57mm(1.8 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Old P/N Motor Length (mm) 23H2A3610 23HS0601 41 Rated Phase Current Resistance (A) (ohm) 1.0 5.2 Phase Inductance (mH) 5.5 Holding Torque (N.cm Min) 40 Detent Torque (N.cm Max) 2.5 Rotor Inertia (g.cm²) 150 23H2A3406 23HS0405 41 0.62 12 24 55 2.5 150.

23H2A7430 Datasheet (83.48 KB)
