23H2A8615, 23H2A3610 Datasheet - MotionKing

23H2A8615 2 Phase Hybrid Stepper Motor

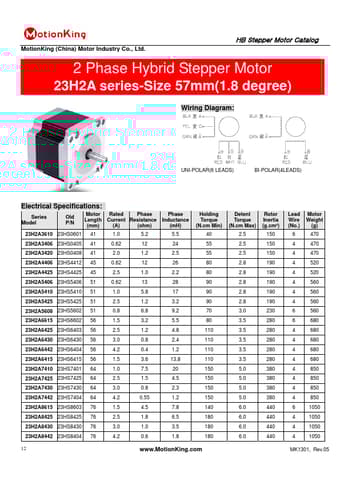

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 23H2A series-Size 57mm(1.8 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Old P/N Motor Length (mm) 23H2A3610 23HS0601 41 Rated Phase Current Resistance (A) (ohm) 1.0 5.2 Phase Inductance (mH) 5.5 Holding Torque (N.cm Min) 40 Detent Torque (N.cm Max) 2.5 Rotor Inertia (g.cm²) 150 23H2A3406 23HS0405 41 0.62 12 24 55 2.5 150.

23H2A3610-MotionKing.pdf

23H2A8615 Datasheet Preview — This datasheet PDF includes multiple part numbers: 23H2A8615, 23H2A3610. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

23H2A8615, 23H2A3610

Manufacturer:

MotionKing

File Size:

83.48 KB

Description:

2 phase hybrid stepper motor.

Note:

This datasheet PDF includes multiple part numbers: 23H2A8615, 23H2A3610.
Please refer to the document for exact specifications by model.
