23HY5627 Datasheet - MotionKing

23HY5627 2 Phase Hybrid Stepper Motor

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 23HY series-Size 57mm(1.8 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Step Motor Rated Phase Phase Angle Length Current Resistance Inductance (deg) (mm) (A) (ohm) (mH) 23HY4607 1.8 41 0.38 32 30 23HY4455 1.8 41 1.55 1.8 3.5 23HY4456 1.8 41 2.1 0.8 1.4 23HY4656 1.8 41 1.5 1.5 1.4 23HY5607 1.8 51 0.38 32 28.

23HY5627 Datasheet (98.82 KB)

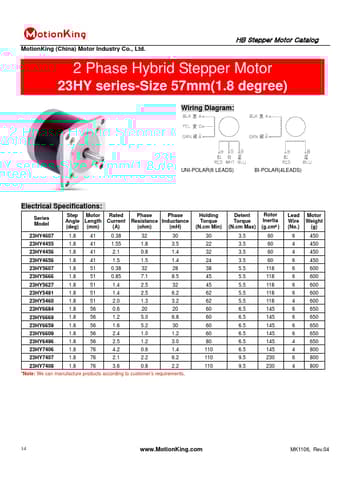

Preview of 23HY5627 PDF
23HY5627 Datasheet Preview Page 2

Datasheet Details

Part number:

23HY5627

Manufacturer:

MotionKing

File Size:

98.82 KB

Description:

2 phase hybrid stepper motor.
