1PMT5930BT3 PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by 1PMT5913BT3/D Product Preview 2.5 Watt Plastic Surface Mount Silicon Zener Diodes Powermite® Package This complete new line of zener/tvs diodes offers a 2.5 watt series in a micro miniature, space saving surface mount package. The Powermite zener/tvs diodes are designed for use as a tvs or a regulation device in automotive and telecommunication applications where efficiency, low leakage, size/height and profile are important. Featur.

1PMT5930BT3 Features

* Voltage Range

* 3.3 to 91 V

* ESD Rating of Class 3 (> 16 kV) per Human Body Model

* Low Profile

* maximum height of 1.1mm

* Integral Heat Sink/Locking Tabs

* Full metallic bottom eliminates flux entrapment

* Small Footprint

1PM-T5913.pdf

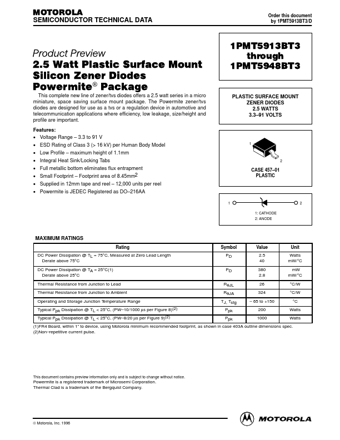

1PMT5930BT3 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1PMT5930BT3, 1PM. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1PMT5930BT3, 1PM

Manufacturer:

Motorola Inc

File Size:

138.26 KB

Description:

Plastic surface mount zener diodes 2.5 watts 3.3.91 volts.

Note:

This datasheet PDF includes multiple part numbers: 1PMT5930BT3, 1PM.
Please refer to the document for exact specifications by model.
