1PMT5935BT3, 1PM - PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS

Motorola Inc

📥 Download Datasheet

1PMT5935BT3 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1PMT5935BT3, 1PM. Please refer to the document for exact specifications by model.

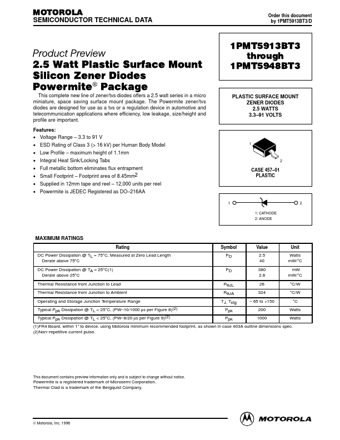

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 1PMT5935BT3, 1PM
Manufacturer: Motorola Inc
File Size: 138.26 KB
Datasheet: 1PM-T5913.pdf
Description: PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS
Note: This datasheet PDF includes multiple part numbers: 1PMT5935BT3, 1PM.
Please refer to the document for exact specifications by model.

1PMT5935BT3 Product details

Features

Voltage Range.
3.3 to 91 V.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
Low Profile.
maximum height of 1.1mm.
Integral Heat Sink/Locking Tabs.
Full metallic bottom eliminates flux entrapment.
Small Footprint.
Footprint area of 8.45mm2.
Supplied in 12mm tape and reel.
12,000 units per reel.
Powermite is JEDEC Registered as DO.
216AA 1 1PMT5913BT3 through 1PMT5948BT3 PLA.
