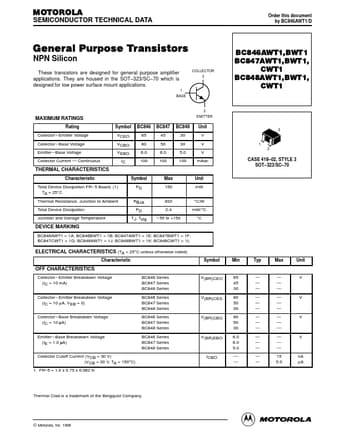

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by BC846AWT1/D
General Purpose Transistors
NPN Silicon
These transistors are designed for general purpose amplifier applications. They are housed in the SOT–323/SC–70 which is designed for low power surface mount applications.
1 BASE
COLLECTOR 3
BC846AWT1,BWT1 BC847AWT1,BWT1,
CWT1 BC848AWT1,BWT1,
CWT1
MAXIMUM RATINGS
2 EMITTER
Rating
Symbol BC846 BC847 BC848 Unit
Collector – Emitter Voltage
VCEO
65
45
30
V
Collector – Base Voltage Emitter – Base Voltage Collector Current — Continuous
VCBO
80
50
30
V
VEBO
6.0
6.0
5.
