BD676 Datasheet - Motorola Inc

BD676 PNP Transistor

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BD676/D Plastic Medium-Power Silicon PNP Darlingtons . . . for use as output devices in complementary general purpose amplifier applications. High DC Current Gain hFE = 750 (Min) @ IC = 1.5 and 2.0 Adc Monolithic Construction BD676, 676A, 678, 678A, 680, 680A, 682 are complementary with BD675, 675A, 677, 677A, 679, 679A, 681 BD 678, 678A, 680, 680A are equivalent to MJE 700, .

BD676_MotorolaInc.pdf

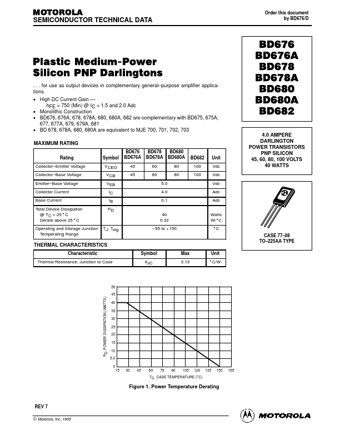

Preview of BD676 PDF
BD676 Datasheet Preview Page 2 BD676 Datasheet Preview Page 3

Datasheet Details

Part number:

BD676

Manufacturer:

Motorola Inc

File Size:

110.03 KB

Description:

Pnp transistor.
