D44H10 - 10 AMPERE COMPLEMENTARY SILICON POWER TRANSISTORS

D44H10 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by D44H/D Complementary Silicon Power Transistors ...for general purpose power amplifi.

D44H10 Applications

* such as switching regulators, converters and power amplifiers.
* Low Collector
* Emitter Saturation Voltage VCE(sat) = 1.0 V (Max) @ 8.0 A
* Fast Switching Speeds
* Complementary Pairs Simplifies Designs D44H Series
* D45H Series
* Motorola Preferred Device

📥 Download Datasheet

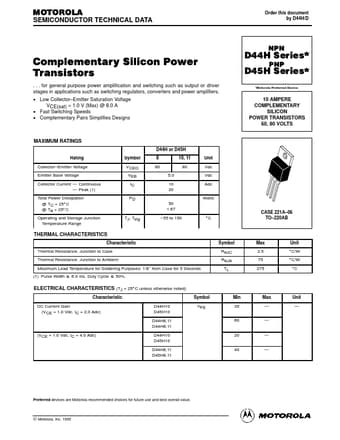

Preview of D44H10 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
D44H10
Manufacturer
Motorola Inc
File Size
103.10 KB
Datasheet
D44H10_MotorolaInc.pdf
Description
10 AMPERE COMPLEMENTARY SILICON POWER TRANSISTORS
