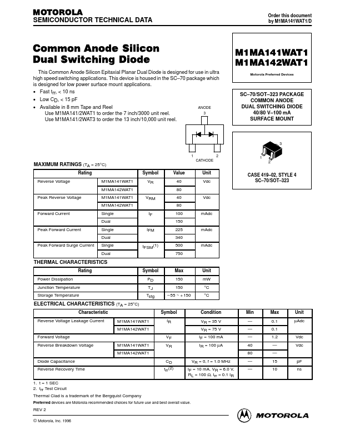

M1MA142WAT1
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by M1MA141WAT1/D mon Anode Silicon Dual Switching Diode
This mon Anode Silicon Epitaxial Planar Dual Diode is designed for use in ultra high speed switching applications. This device is housed in the SC- 70 package which is designed for low power surface mount applications.
- Fast trr, < 10 ns
- Low CD, < 15 p F
- Available in 8 mm Tape and Reel Use M1MA141/2WAT1 to order the 7 inch/3000 unit reel. Use M1MA141/2WAT3 to order the 13 inch/10,000 unit reel.
ANODE 3
M1MA141WAT1 M1MA142WAT1
Motorola Preferred Devices
SC- 70/SOT- 323 PACKAGE MON ANODE DUAL SWITCHING DIODE 40/80 V- 100 m A SURFACE MOUNT
2 CATHODE
1 2
MAXIMUM RATINGS (TA = 25°C)
Rating Reverse Voltage M1MA141WAT1 M1MA142WAT1 Peak Reverse Voltage M1MA141WAT1 M1MA142WAT1 Forward Current Single Dual Peak Forward Current Single Dual Peak Forward Surge Current Single Dual IFSM(1) IFM IF VRM Symbol VR Value 40 80 40 80 100 150 225 340 500 750
Unit Vdc
CASE 419- 02,...
