SN54LS240 Datasheet - Motorola Inc

SN54LS240 OCTAL BUFFER/LINE DRIVER

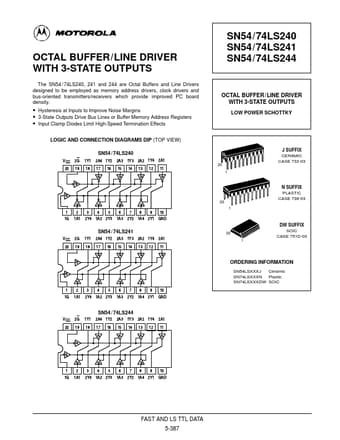

OCTAL BUFFER/LINE DRIVER WITH 3-STATE OUTPUTS The SN54 / 74LS240, 241 and 244 are Octal Buffers and Line Drivers designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC board density. SN54/74LS240 SN54/74LS241 SN54/74LS244 OCTAL BUFFER/ LINE DRIVER WITH 3-STATE OUTPUTS LOW POWER SCHOTTKY Hysteresis at Inputs to Improve Noise Margins 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers .

SN54LS240_MotorolaInc.pdf

Preview of SN54LS240 PDF
SN54LS240 Datasheet Preview Page 2 SN54LS240 Datasheet Preview Page 3

Datasheet Details

Part number:

SN54LS240

Manufacturer:

Motorola Inc

File Size:

191.83 KB

Description:

Octal buffer/line driver.
