SN54LS244, SN54LS240 Datasheet - Motorola

SN54LS244 OCTAL BUFFER/LINE DRIVER

OCTAL BUFFER/LINE DRIVER WITH 3-STATE OUTPUTS The SN54 / 74LS240, 241 and 244 are Octal Buffers and Line Drivers designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC board density. Hysteresis at Inputs to Improve Noise Margins 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers Input Clamp Diodes Limit High-Speed Termination Effects LOGIC AND CONNECTION DIAGRAMS DIP (TOP VIE.

SN54LS240_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: SN54LS244, SN54LS240. Please refer to the document for exact specifications by model.

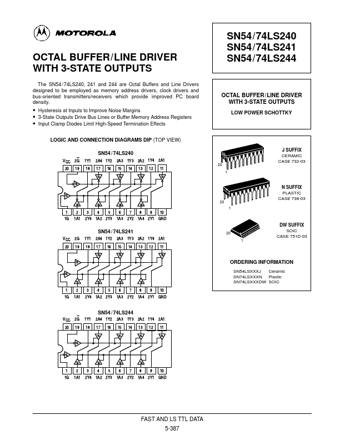

SN54LS244 Datasheet Preview Page 2 SN54LS244 Datasheet Preview Page 3

Datasheet Details

Part number:

SN54LS244, SN54LS240

Manufacturer:

Motorola

File Size:

191.83 KB

Description:

Octal buffer/line driver.

Note:

This datasheet PDF includes multiple part numbers: SN54LS244, SN54LS240.
Please refer to the document for exact specifications by model.
