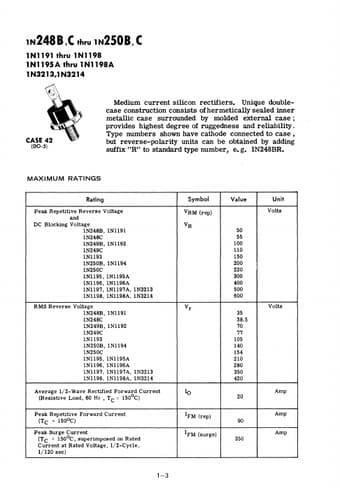

1N248B, Medium current silicon rectifiers

Ie C lN248B thru lN250B, lN1191 thru lN1198 lN1195A thru lNl198A 1N3213,.1 N3214 CASE 42 (DO-5) Medium current silicon rectifiers.

Unique doublecase construction consists of hermetically sealed inner metallic case surrounded by molded external case; provides highest degree of ruggedness and reliability .

Type numbers shown have cathode connected to case.

but reverse-polarity units can be obtained by adding suffix "R" to standard type number, e.

IN248BR.

MAXIMUM RATINGS Rating Peak Repetiti
