1N3045, 1N3016 Datasheet - Motorola

1N3045 1.0 WATT METAL SILICON ZENER DIODES

1N3821 thru 1N3830 (SILICON) SERIES (lM3.3AZ10 thru lM7.5AZ10) lN3016 thru lN3051 SERIES (1 M6.8Z thru 1M200Z) Desig'IH"I'S Data Sheet 1.0 WATT METAL SILICON ZENER DIODES a complete series of 1.0 Watt Zener Diodes with limits and operating characteristics that reflect the superior capabilities of silicon oxide passivated junctions. All this in an axial lead, metal package offering protection in all common environmental conditions. To 100 Watts Surge Rating@10ms .

1N3016-Motorola.pdf

This datasheet PDF includes multiple part numbers: 1N3045, 1N3016. Please refer to the document for exact specifications by model.

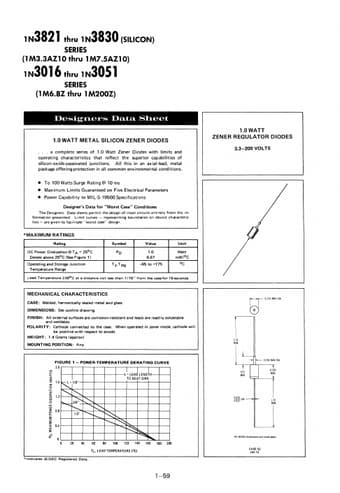

1N3045 Datasheet Preview Page 2 1N3045 Datasheet Preview Page 3

Datasheet Details

Part number:

1N3045, 1N3016

Manufacturer:

Motorola

File Size:

396.55 KB

Description:

1.0 watt metal silicon zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N3045, 1N3016.
Please refer to the document for exact specifications by model.
